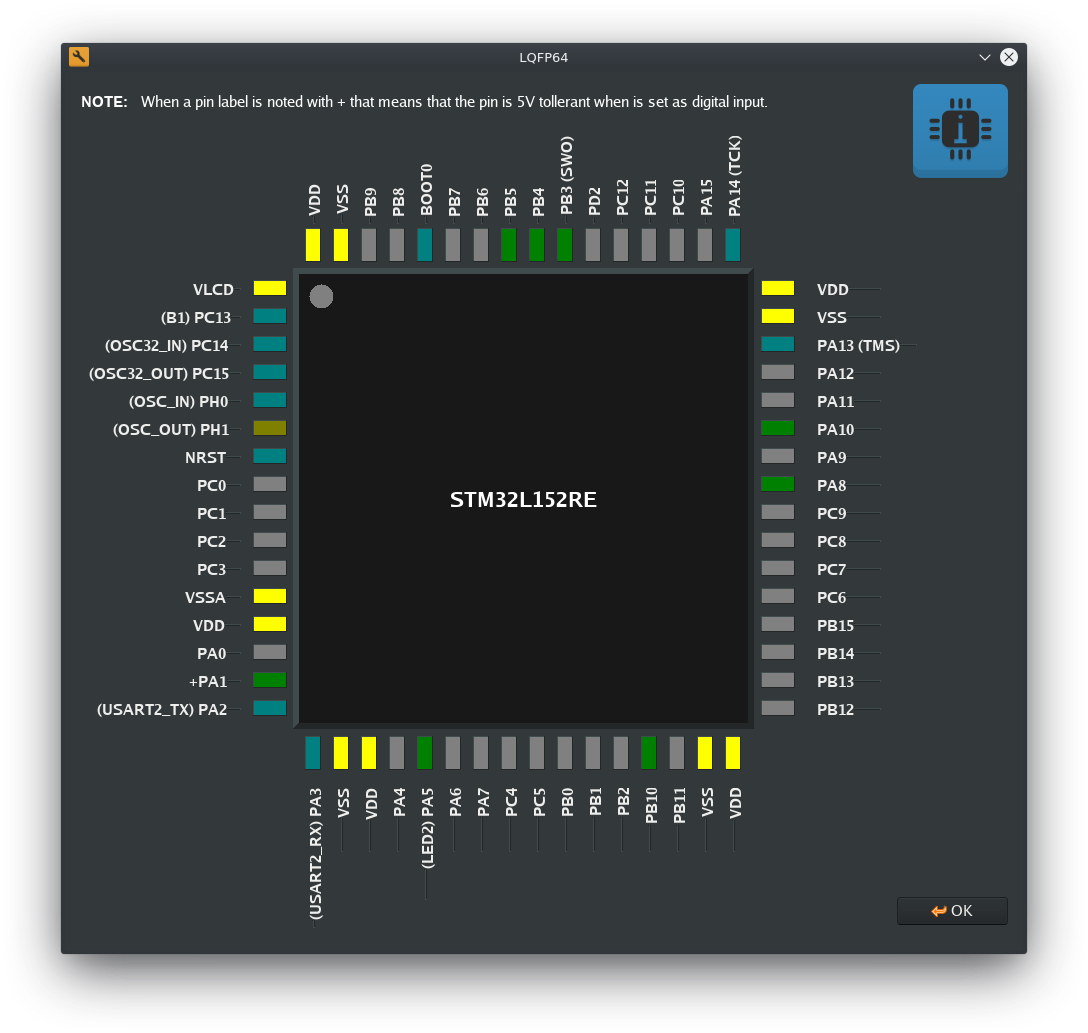

The pads of LQFP64 package will show the actual status by changing their own colors. Is not much right now, but combined with all the program has to offer, is infinitely better than what CubeMX for STM8 microcontrollers offers. The following image shows the pin setup of the l152_single_ds18b20 project, where 6 pins are set for LCD4 peripheral and PA1 is set as ONEWIRE bus (in the previous article you have another image to compare with):

In the next minor version, I will add labels to the green pads (as hint when the mouse pointer passes over the pad) and I will mark all the pins that are 5V tolerant.

But right now, I’m not mentally prepared to start again the torture of making every pin settable from this window, including conflict mitigation. I’ll let this for another times…

Code committed in its repository.
